DT-TRS

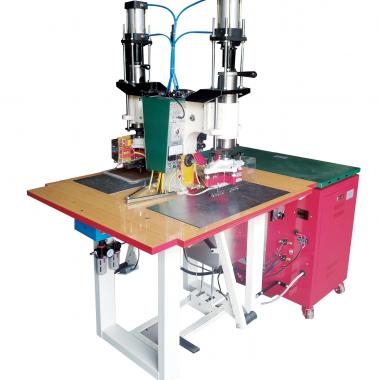

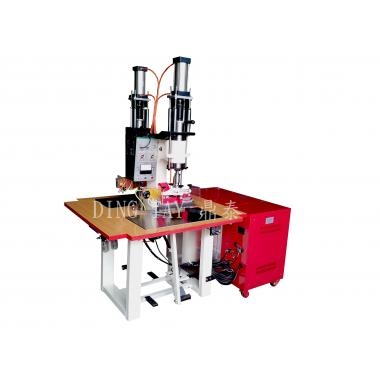

High Frequency Plastic Welding Machine(Double-head high power standard series pedal/Pneumatic)- DT---DINGTAY Brand name
- 4000---high frequency out W
- TR---Fixed pressure / adjustable stroke
- S--- high sensitive spark-suppressor device
Specifications
English Product | High Frequency Plastic Welding Machine (Double-head high power standard series pedal/Pneumatic) |
|||
---|---|---|---|---|
Model | DT-4000TRS | DT-5000TRS | DT-8000TRS | DT-10000TRS |
H.F.out-put Power kw | 4KW | 5KW | 8KW | 10KW |
Oscillation Frequency | 40.68MHZ | 27.12MHZ | ||
Power Supply | AC 220/380/415/440V 3p/1p | AC 220/380/415/440V 3p | ||
Input Power | 7KVA | 9KVA | 14KVA | 18KVA |
Oscillation Tube | 3062 | 7T85 | 7T69 | 3069 |
Rectifier | Silicon Rectifier | |||
Operation type | Pedal/Pneumatic | |||
Maximum pressure(kgs) | 400 | 500 | 600 | |
Up electrodes(mm) | 200*70 | 200*70 / 320*70 | 320*70 | |
Lower electrodes size(mm) | 700*350 | 700*350/800*400 | 800*400 | |
Max gap of electrodes(mm) | 170 | |||
Activities of the distance(mm) | 60 | |||
high sensitive spark-suppressor device. | high sensitive spark-suppressor device | |||
Net Weight(kgs) | 370 | 390 | 430 | 450 |
Gross Weight(kgs) | 520 | 550 | 580 | 600 |
Packing measurement(mm) | 1880*1150*2110 | |||
Applicable material | PVC, or contain ingredients PVC30%, PU, TPU, EVA, TPE, PE, PET-A of PET-G.PLA.New research and development of environmentally friendly materials.Soft and hard rubber, animal leather or cloth, can be processed | |||
Applicable product / range | Footwear, uppers, trademark, raincoats, canvas, handbags, cushions, tools, bags, photo albums, medical drip bags, urine bags, stationery, certificates jacket, medical beds, air bed .... can be processed. |
