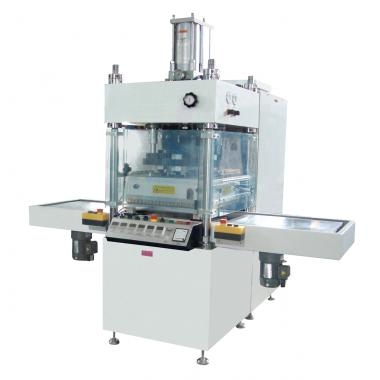

DT-C/L2YC
High Frequency Welding Plastic Machine-(Automatic double-push plate embossing machineDT---DINGTAY Brand name
12000---high frequency out W
C---C-type strong structure
L---Pushplate
2---2 working stations
Y---Hydor-Pneumatic
C---Cutting
- SYNCHRONOUS CUTOFF OF OIL PRESSURE AND HIGH FREQUENCY :This unit uses the combined mould with blade or ally steel blade to directly cut the voltage material at the blade position of the mould through the oil pressure system ,following the completion of the high frequency voltage program. Thus,it can reduce the rej ected products caused by cutter's
- additional cut off after the high frequency,and greatly improve the production efficiency. This machine is most applicable for cutting and processing the voltage of high accuracy trademarks, vamps and watchbands and greatly improve the production efficiency. This machine is most processing the voltage of high accuracy trademarks,vamps and watchbands.
- OIL PRESSURE PRESSURE INSTALLATION: The machine dispose pressure adding installation of oil pressure . it can regulate the pressure reducing valve of oil pressure according to use condition(Okg-45kg),and it is good for the operating worker to reduce working load and improve the quality of voltage product ,it can change the voltage processing handicraft greatly.
- ACCURATELY LOCATION : This machine is qualified to locate with high precision push plate location system. And the system make contra position of large area process, By using the machine, it increases times of produce benefit and the finished product rate reach 100%
Specifications
Chinese products | 高周波塑膠熔接同步裁斷機-雙側滑台-氣油壓增壓式 | |
---|---|---|
English Product | High Frequency Welding Plastic Machine-(Automatic double-push plate embossing and cutting machine) | |
Model | DT-12000C/L2YC | DT-15000C/L2YC |
H.F.out-put Powwe kw | 12KW | 15KW |
Oscillation Frequency | 27.12MHZ | |
Power Supply | AC 220/380/415/440V 3p | |
Input Power | 24KVA | 28KVA |
Oscillation Tube | 3130 | ITL/5-1/8T85 |
Rectifier | Silicon Rectifier | |
Operation type | Hydor-Pneumatic | |
Maximum pressure(kgs) | 20Tons | |
Up electrodes(mm) | 450*300 | 550*400 |
Lower electrodes size(mm) | 650*500 | 750*600 |
Max gap of electrodes(mm) | 200 | |
Activities of the distance(mm) | 150 | |
high sensitive spark-suppressor device | high sensitive spark-suppressor device | |
Net Weight(kgs)(kgs) | 1550 | 1750 |
Gross Weight(kgs(kgs) | 1750 | 1950 |
Packing measurement(mm) | 1650*220*2150 | 2000*1800*2100 |
Applicable material | Applicable material:PVC or contain ingredients PVC30%, PU, TPU, EVA, TPE, PE, PET-A PET-G.PLA all sorts of new environmentally friendly materials. Fit with nylon non-woven, leather, weaving, cotton, rubber cloth, a variety of materials. | |
Applicable product / range | Applicable product / range:The large upper, exquisite trademark, gloves, basketball, football, urine bag, drip bags, cushions, ice pillow, mattress, cushion, foot pad ... can be processed. |
For the company, the pursuit of excellence and customer satisfaction is our business goal of 30 years and will never change. We sincerely look forward to your criticism and advice, which will enable us to make progress to provide you with better. Service.
